This is what the tower is gonna look like.
It is already about 5.5 feet tall without a primary coil or stand for the other stuff.

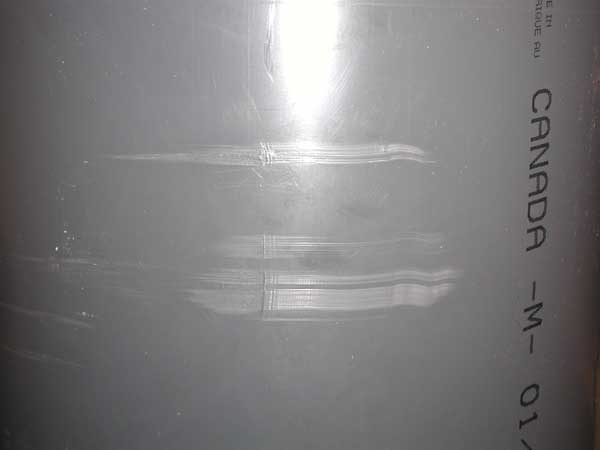

The darn PVC has a scrape in it. That will have to be fixed.

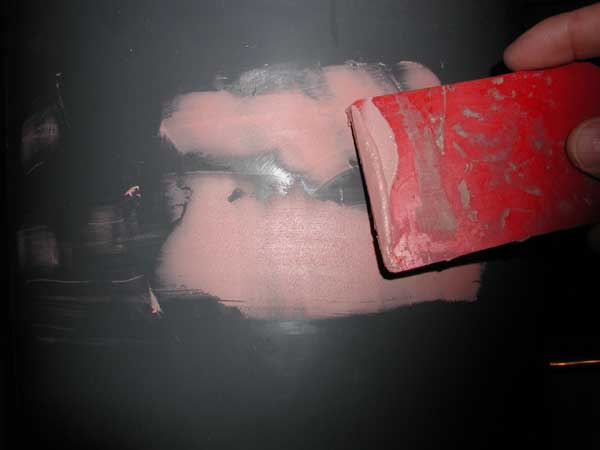

Good old bondo.

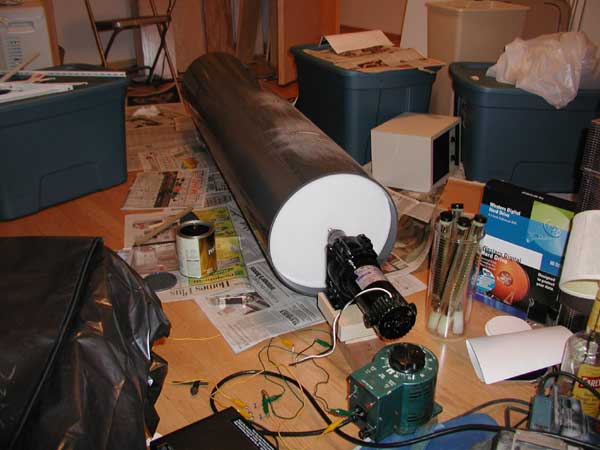

Sanded and ready to seal with polyurethane. It must be sealed
because PVC absorbs water.

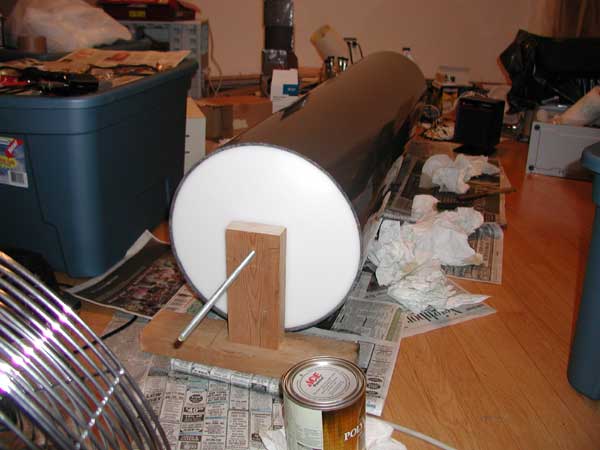

Oil based polyurethane applied.

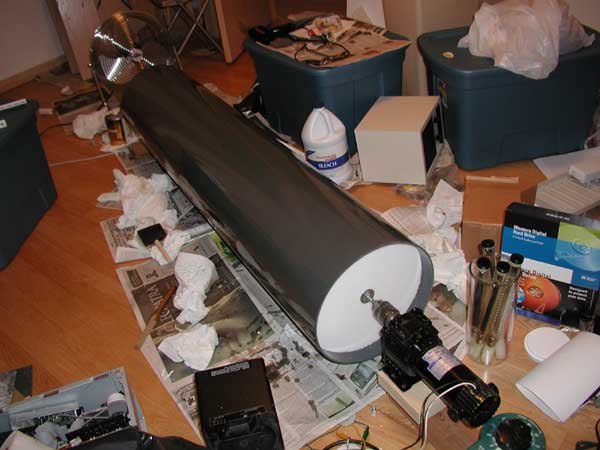

Hard and glossy.

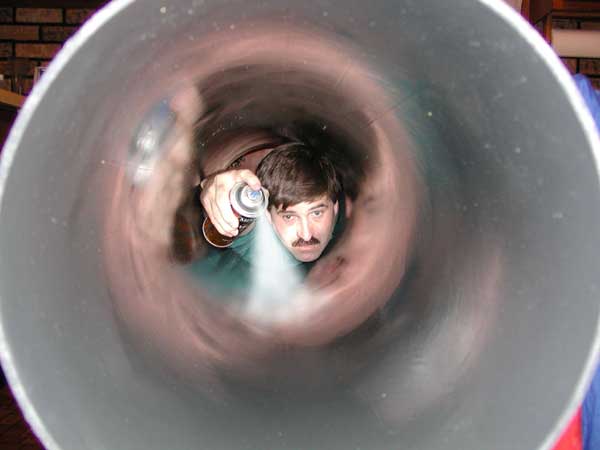

Don't forget, the inside needs to be sealed.
Don't forget, always wear a mask.

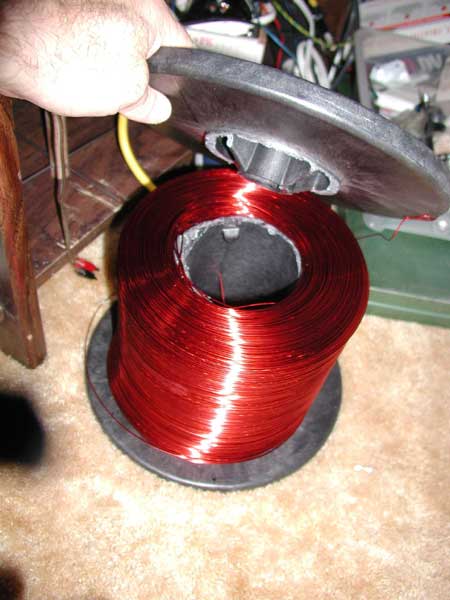

10000 feet of 18 gauge magnet wire, ready to go. We'll need about
The spool was broken in transit. This is a problem.

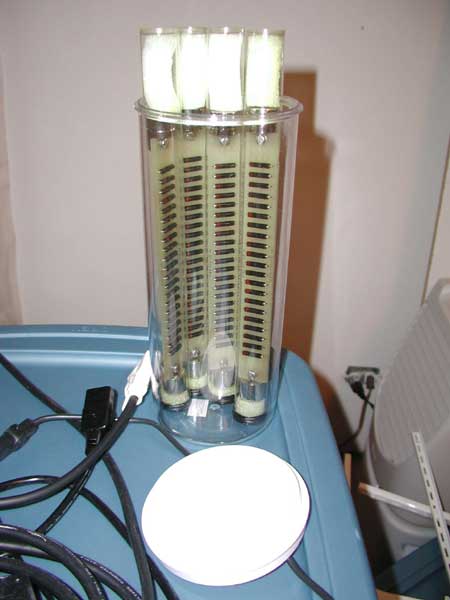

High voltage diodes and immersion tank to make a 125 KV rectifier

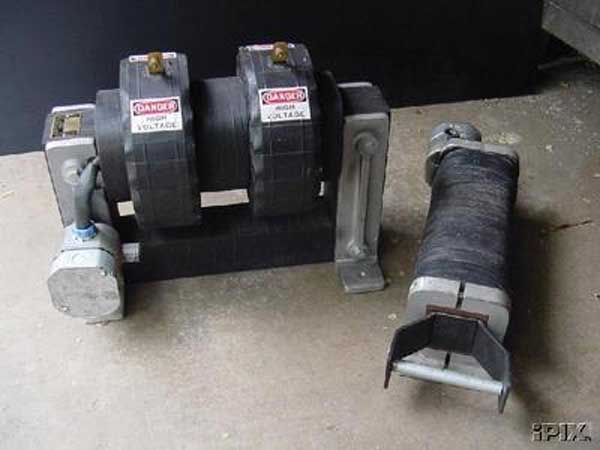

Bombarder transformer and slide choke. Rated 30 KV @ 250 mA.
I've been able to get over 500 mA.
That's 15,000 watts!
